Zetex® Fibre Fabrics 700°C

Zetex Fibre fabric thermal insulation

Zetex® Fibre Fabrics, up to 700 °C

Our partner Newtex offers a wide range of fire resistant and temperature resistant products since 1978. The Zetex® range presents a great variety of heat resistant textiles which can withstand temperatures up to 1,095 °C. Due to their characteristics and performances, these products are ideal for fire protection.

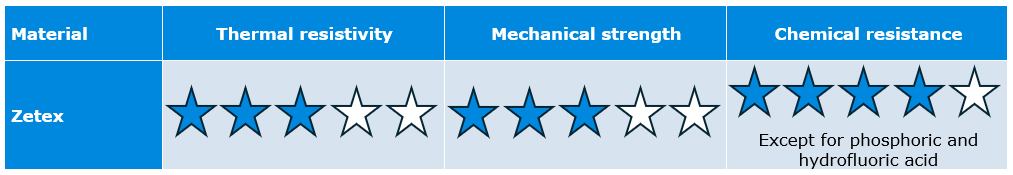

Made from textured glass fibresZetex® fabrics have exceptional thermal and insulating properties. Composed of inorganic materials, they present no health risks. They are used at an operating temperature of 540 °C and withstand 700 °C. Zetex® fabrics are also characterized by their excellent resistance to cold (–73 °C) as well as their good dielectric, chemical and mechanical resistance, which surpasses that of steel with the same diameter. Chemically inert, the fibre has good abrasion resistance, excellent chemical resistance and recognised rot-proof properties.

Other versions of Zetex® fabrics include Zetex®Steel fabrics, reinforced with steel wire to increase their strength and durability. These specific products can withstand up to 1,095 °C. Plus, many different coatings are available (silicone, PTFE, ceramic cement, etc.).

Applications of Zetex® Fabrics

  • Seal
  • Heat reflectors
  • Curtains
  • Blankets
  • Protective clothing

Technical Data of Zetex® Fabrics

Property

Unit

Zetex® Fabrics

Item N°

A-300

A-600

A-800

A-1000

A-1200

Area Density

g/m²

288

600

814

949

1 119

Thickness

mm

0.51

0.84

1.40

1.65

1.68

Width

mm

1,524

1,020
1,524

1,020
1,524

1,020
1,524

1,020
1,520

Length

m

45

45

45

45

45

Max. Operating Temperature

°C

540

540

540

540

540

Peak Temperature

°C

700

700

700

700

700

Other dimensions and versions are avalaible on request.



Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
