Aramid Fibre Grip Tapes 300°C

Aramid self gripping tape loop and hook for high temperature

Aramid Fibre Grip Tapes, up to 300 °C

Made of aramid loops and polyamide monofilament hooks, high-temperature grip tapes are self-extinguishing and non-melting. They resist to a continuous temperature of 140 °C, to cold, and to general chemical products (excluding acids) and are certified to aeronautical and automobile standards.

The grip tapes exist with stainless steel hooks which improve their thermal resistance up to 235 °C.

General Characteristics of Aramid Grip Tapes

Physical Properties:

  • Thickness of closure: 3.1 mm (hooks: 1.6 mm/loops: 2.5 mm)
  • Density by surface area: 0.078 g/cm2

Mechanical Properties:

  • Rupture point of strip: 300 N/cm
  • Elongation at rupture: 70 %
  • Pull-out resistance: 1 N/cm(0.8 N/cm after 1,000 cycles)
  • Shear strength: 7 N/cm2 (5 N/cm2 after 1,000 cycles)
  • Tensile strength: 4.5 N/cm2 (3.5 after 1,000 cycles)

Thermal Properties:

  • Operating temperature: 140 °C or 235 °C (hooks)
  • Peak temperature: 260 °C (hooks)
  • Resistance to negative temperatures

Chemical Properties:

  • Good resistance to alkalis, solvents, hydrocarbons and alcohols
  • Low resistance to acids

Standards

  • Aeronautics: FAR/EASA CS 25-853 Appendix F Part 1 (a) (1) (ii) 12s.
  • Automobile: FMVSS-302

Maintenance of Aramid Grip Tapes

  • Washable at 95 °C
  • Suitable for dry cleaning
  • Suitable for ironing (with tape closed)

Applications of Aramid Grip Tapes

  • Military: production of camouflage uniforms and equipment
  • Automobile: passenger compartment fixings
  • Aeronautics: attachment of thermal insulation

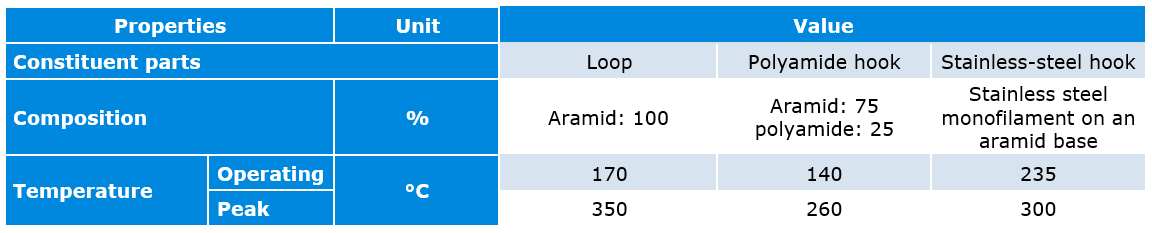

Technical Data of Aramid Grip Tapes

Property

Unit

Hook Item N°

002-0015

002-0010

002-0030

Loop Item N°

002-0025

002-0020

002-0025

Material

aramid

aramid

inox

Colour

white, green

white, green

white

Width

mm

25

50

25

Width of Edges

mm

2.5

2.5

2.5

Length

m

250

200

250

Max. Operating Temperature

°C

140

140

235

Max. Peak Temperature

°C

260

260

> 300

Availability

on request

white: in stock

green: on request

on request

Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
