High Temperature Biosoluble Paper 1,200°C

Biosoluble ceramic fiber paper thermal insulator

Biosoluble Paper, up to 1,200 °C

Biosoluble fibres paper composition excludes all carcinogenic classification as per Q in directive 97/69 EC, unlike pure silica and silicate fibres. Biosoluble fibres paper are an ideal solution to replace ceramic fibres. Biosoluble fibres dissolve in bodily fluids such as those found in the pulmonary alveoli. They are less biopersistent, meaning they are eliminated more quickly by the body while maintaining their excellent thermal insulation and fire protection qualities.

Made from alkaline earth silicate wool, biosoluble paper has an extremely uniform structure. Resistant to continuous temperatures up to 1,260 °C, this product has low thermal conductivity and high temperature stability as well as being light, smooth, flexible and easy to handle. These exceptional properties come from the careful selection of specific organic binders combined with advanced manufacturing processes.

Our biosoluble papers are available in thicknesses from 1 to 6 mm and a width of 610 mm. Sold in whole rolls, we also offer customised cuts. Other dimensions are available on request.

Applications of Biosoluble Fibre Paper

  • High-temperature gasket and packing
  • Mould insulation
  • Heat shields for the automotive industry
  • Molten metal transfer systems (second-rate insulation)
  • Insulating envelope for the protection of nozzles in the steel industry

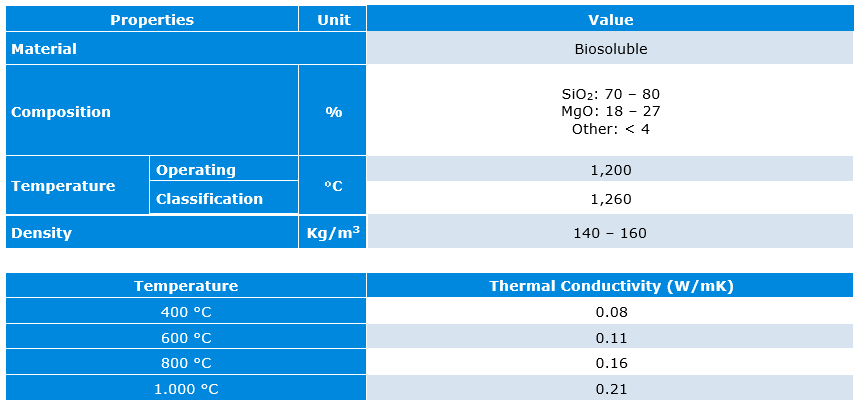

Technical Data of Biosoluble Fibre Paper

Property

Unit

Item N°

214-0010

214-0020

214-0030

214-0060

Thickness

mm

1

2

3

6

Width

mm

610

610

610

610

Length

m

125

60

35

15

Density

kg/m3

140-160

140-160

140-160

140-160

Tensile Strength

kPa

350

350

350

350

Medium-Diameter Fibres

µm

4

4

4

4

Ignition Loss

Wt. %

< 10

< 10

< 10

< 10

Melting Point

°C

> 1,500

> 1,500

> 1,500

> 1,500

Operating Temperature

°C

1,260

1,260

1,260

1,260

Thermal conductivity  (Wm-1.K-1)

at 400 °C

0.08

at 600 °C

0.11

at 800 °C

0.16

at 1,000 °C

0.21

Temperature according to Thickness for Biosoluble Fibre Paper

Thickness (mm)

1 2 3 6

Hot-surface temperature  (°C)

Cold-surface temperature  (°C)

538

398

332

264

199

648

472

396

317

240

760

870

453

381

273

870

513

410

312

982

480

351

1,093

509

392

1,204

432

Other thicknesses are available on request.

Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
