Biosoluble fibre

High temperature fabrics made of biosoluble fibre.

Final Advanced Materials has a wide range of biosoluble fibre products available: packings, twisted ropes, braided ropes, felts, fabrics, paper, sleeves, tapes, etc.

What is Biosoluble Fibre ?

Biosoluble fibres are guaranteed asbestos and ceramic fibre-free. In order to eliminate the health risks associated with exposure to ceramic fibres or rock fibres for insulation, their chemical composition has been adapted. These fibres dissolve in bodily fluids such as those found in the pulmonary alveoli. They are less biopersistent, meaning they are eliminated more quickly by the body while maintaining their excellent thermal insulation and fire protection qualities. Our biosoluble fibre products are reinforced with glass or refractory steel which enhances their thermal resistance up to 650 °C (E-glass) and 1,050 °C (refractory steel).

Applications of Biosoluble Fibre

  • Insulation for pipes and exhausts
  • Electrical insulation
  • Metal work
  • Insulation for furnaces

General Characteristics of Biosoluble Fibre

Health and Safety

  • Low biopersistance
  • Excluded from all carcinogenic classifications
  • Stored as a non-hazardous product

Thermal Properties

  • Can be used up to 1,200 °C
  • Very good resistance to high temperatures
  • Low thermal capacity
  • Low thermal conductivity
  • Resistance to thermal cycles

Mechanical Properties

  • Good mechanical resistance
  • Very low linear shrinkage (< 2 % up to 1,200 °C)
  • High flexibility

Chemical Properties

  • Very good resistance to various chemicals (except phosphoric and hydrofluoric acids and concentrated bases and solvents)
  • No usage restrictions

Benefits of Biosoluble Fibre

  • Excellent thermal insulation properties
  • High resistance to traction
  • No binder or lube
  • Good thermal stability
  • Low thermal accumulation
  • Excellent chemical stability and resistance to most corrosif substances
  • Very good flexibility and resiliance
  • No reaction to thermal shock
  • Excluded from all carcinogenic classifications

Comparative Table

Propriété

Unité

S98

Siice S94 Biosoluble

Composition

SiO2 : 98 %

Others: 2 %

SiO2 : 94.5 %

Al2O3 : 4.5 %

Na2O : 0.5 %

Others: 0.5 %

SiO2 : 63-67 %
CaO : 29-33 %
MgO : 1.5-4 %
Al2O3 : max 1 %
Fe2O3 : max 0.6 %

Color

off-white

white

light green

Fibre Diameter

µm

6

9

3.5

Max. Peak Temperature

°C

1,200

1,100

650 (verre)

1,050 (Inconel®)

High Temperature Stability

Very good

Excellent

Good

Resistance To Thermal Shock

Excellent

Excellent

-

Chemical Resistance

Good

Good

Good

Mechanical Resistance

Good

Good

High (Abrasion)

Flexibility

Good

Excellent

Good

Thermal Conductivity

Low

Low

Low

Reaction to Fire

Fireproof

Fireproof

Fireproof

Product Range of Biosoluble Fibre

Our products in biosoluble fibre can adapt to different applications to suit all requirements:

Tapes

Biosoluble fibre strips are available in 2, 3 and 5 mm thicknesses with widths of 10 to 200 mm. Adhesive strips and strips with bolt holes are also available.

Packings

Produced with an E fibreglass sleeves, the packing has excellent flexibility while maintaining good mechanical strength. The core consists of 100 % biosoluble fibres. Sleeves are available in diameters from 12 to 80 mm and can reach a peak temperature of 600 °C.

Twisted Ropes

Biosoluble fibre twisted ropes are reinforced, either with E-glass fibre or with refractory steel (Inconel®):

  • Glass fibre reinforcement is more cost-effective, and provides the benefit of not being electrically conductive;
  • Refractory steel reinforcement increases the strength of the high-temperature braided cord, and improves its physical properties, whilst preserving its initial flexibility. These twisted ropes are available in diameters ranging from 5 to 60 mm.

Braided Ropes

Alike twisted ropes, biosoluble fibre braided ropes can be reinforced with refractory steel or fiberglass and benefit from the same advantages. The biosoluble braided ropes are available in diameters ranging from 5 to 60 mm, in square, rectangular or round sections.

Bulk fibre

The product consists of a mass of randomly orientated, long, fluffy, resistant fibres. It has excellent thermal stability and retains its flexible fibrous structure up to a temperature of 1,000 °C. It contains no binders and emits no smoke or odor when first heated. The fibres are insensitive to thermal shock and absorb very little energy when heated. Biosoluble bulk fibre is available lubricated for use when filling or as expansion joints. The non-lubricated version is particularly useful for vacuum forming. The fibres are available in short, medium, long and extra-long sizes. The level of thermal conductivity depends on the degree of compression during installation.

Sleeves

Our sleeves are available in diameters of 15 to 60 mm. They are sold in 25 m rolls.

Felts

Biosoluble fibre felts are obtained from long fibres of alkaline earth silicate. Their high-temperature insulation performance is remarkable. With high thermal stability, they retain a flexible fibrous structure up to a temperature of 1,200 ° C. Felts contain no binders or lubricants and emit no smoke or odor when heated. Biosoluble fibre felts are flexible and easy to cut or install. They are available laminated with an aluminium film to improve the thermal properties of the sheets.

Papers

Made from alkaline earth silicate wool, biosoluble paper has an extremely uniform structure. Resistant to continuous operating temperatures up to 1,260 °C, this product has low thermal conductivity and high temperature stability as well as being light, smooth, flexible and easy to handle. These exceptional properties come from the careful selection of specific organic binders combined with advanced manufacturing processes. Our papers are available in thicknesses from 1 to 6 mm and a width of 610 mm. Sold in whole rolls, we also offer customized cuts. Other dimensions are available on request.

Fabrics

Biosoluble fibre fabrics are available in 2 and 3 mm thicknesses. During production, they are heat-treated to limit flying fibres and dust.

Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.

Biosoluble Fibre (248.80k)

Data Sheet: Biosoluble Fibre


Image générique

Biosoluble Bulk Fibre 1,200°C

Biosoluble bulk fibre are long, fluffy, resistant fibres that resist temperatures up to 1,200°C and are an ideal alternative to asbestos.
Full description

Biosoluble Fibre Braided Ropes 1,200°C

The biosoluble fibreglass braids are available in reinforced glass or refractory steel with diameters from 5 to 60mm, in square or round sections.
Full description

Biosoluble Fibre Fabrics 1,200°C

Biosoluble fibre fabrics are available in 2mm and 3mm thicknesses. During production, they are heat-treated to limit flying fibres and dust.
Full description

Biosoluble Fibre Felt 1,200°C

Biosoluble fibre blankets are obtained from long fibres of alkaline earth silicate. Their high-temperature insulation performance is remarkable.
Full description

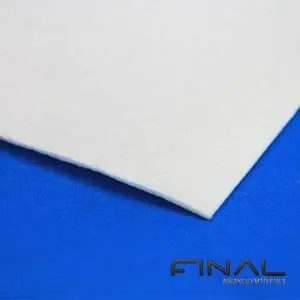

Biosoluble Fibre Paper 1,200°C

Made from alkaline earth silicate wool, 300 paper has an extremely uniform structure.
Full description

Biosoluble Fibre Sleeve 1,200°C

Our sheaths are available in diameters of 15 to 60mm. They are sold in 25m rolls but we also offer customised cuts.
Full description

Biosoluble Fibre Tapes 1,200°C

Biosoluble fibre strips are available in 2, 3 and 5 mm thicknesses with widths of 10 to 20 mm. Adhesive strips and strips with bolt holes are also available.
Full description

Biosoluble Fibre Twisted Ropes 1,260°C

Biosoluble fibre glass cords feature a fibre glass sheath. They can be reinforced with refractory steel or fibreglass. We offer diameters from 12 to 60 mm.
Full description

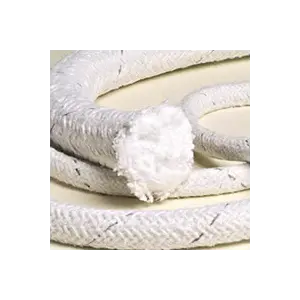

Biosoluble Fibres Packings 1,200°C
