Ceramic Fibre Fabrics, up to 1,700 °C
Final Advanced Materials can supply an innovative continuous polycrystalline ceramic fibre. The metallic oxides at the heart of its composition ensure that the processing of this fibre into ceramic textiles is particularly simple. The resulting mechanical and thermal performance capabilities exceed those of other fibrous materials, including aramid, silica, quartz or even glass.
Primarily composed of alumina (Al2O3) at different percentage, 080-0300 and 080-0400 monofilament ceramic fabrics are resistant to continuous temperatures of 1,100 °C and 1,370 °C, respectively. They are mainly used in the industry as a heat shield or fire barrier.
A Heat Cleaned coated version is available to limit irritations for customised applications as well as flying fibres and the amount of smoke generated during exposure to high temperatures.
Applications of Ceramic Fabrics
- Fire shield
- Heat shield
- Gasket
- Thermal protection
- Curtains and lining
- Expansion joints
- Manufacture of composites

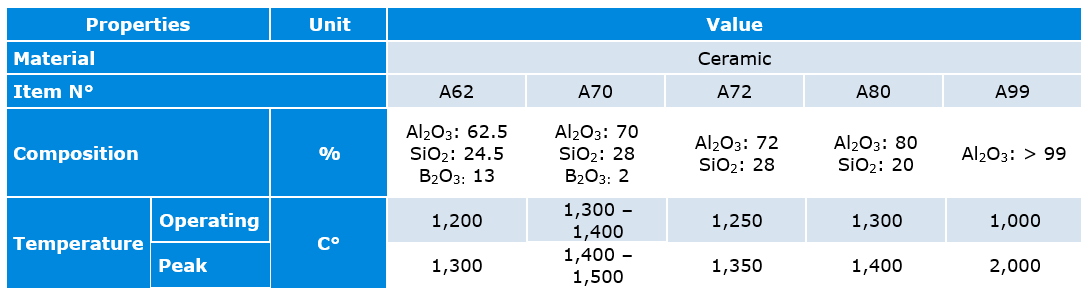

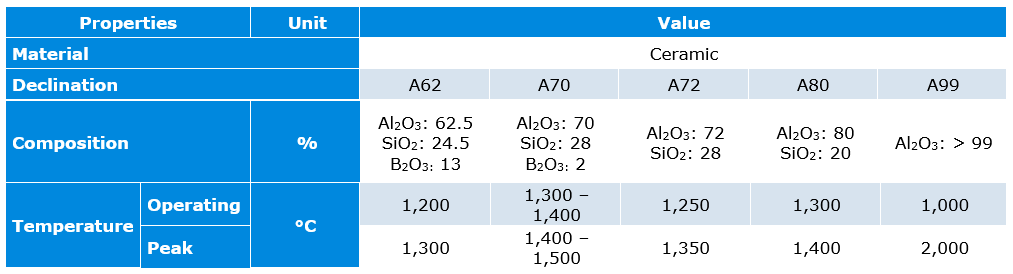

Technical Data of Ceramic Fabrics
|
Property |
Unit |
Ceramic Fabrics |
|||||
|
Item N° |
080-0310 to 080-0390 |
080-0410 to 080-0430 |
|||||
|
Composition |
% |
Al2O3 : 62.5 |
Al2O3 : 70 |
||||
|
Max. Operating Temperature |
°C |
1,100 |
1,370 |
||||
|
Peak Temperature |
°C |
1,700 |
1,700 |
||||
|
Thermal Conductivity |
at 100 °C |
W.m-1.K-1 |
0.12 |
- |
|||
|
at 500 °C |
0.14 |
0.16 |
|||||
|
at 1,000 °C |
0.18 |
0.19 |
|||||
|
Linear Shrinkage after 15 hrs at 1,300 °C |
% |
< 1.5 |
< 0.5 |
||||
Packaging of Ceramic Fabrics
|
Property |
Unit |
Ceramic Fabric 1,100 °C |
|||||||
|
Item N° |
080-0310 |
080-0320 |
080-0330 |
080-0340 |
080-0350 |
||||
|
Area Density |
g/m² |
110 |
290 |
270 |
310 |
440 |
|||
|
Width |
mm |
970 |
970 |
1,100 |
970 |
910 |
|||
|
Thickness |
mm |
0.38 |
0.41 |
0.36 |
0.38 |
0.53 |
|||
|
Weave |
No gauze weaving |
5-Satin |
5-Satin |
Plain weave |
5-Satin |
||||
|
Property |
Unit |
Ceramic Fabric 1,100 °C |
||||||
|
Item N° |
080-0360 |
080-0370 |
080-0380 |
080-0390 |
||||
|
Area Density |
g/m² |
540 |
610 |
810 |
980 |
|||
|
Width |
mm |
1,270 |
910 |
910 |
100/300/760 |
|||
|
Thickness |
mm |
0.76 |
0.81 |
1.00 |
1.40 |
|||
|
Weave |
4-Satin |
4-Satin |
5-Satin |
Dual plain weave |
||||
|
Property |
Unit |
Ceramic Fabric 1,370 °C |
|||||
|
Item N° |
080-0410 |
080-0420 |
080-0430 |
||||
|
Area Density |
g/m² |
510 |
680 |
880 |
|||
|
Width |
mm |
91 |
1 600 |
760 |
|||
|
Thickness |
mm |
0,53 |
0,81 |
0,97 |
|||
|
Weave |
5-Satin |
4-Satin |
5-Satin |
||||
Other dimensions and cuts are available on request.
Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
