Silicate Fibre Tapes 1200°C

Silicate Fibre Tapes, up to 1,200 °C

Silicate fibre products are inorganic, and contain no toxic substances (asbestos-free) or irritants. The good thermal and mechanical properties of these products make them excellent replacements for asbestos-based products. With a diameter ranging from 6 to 9 μm, these fibres pose no hazard to health.

Silicate fibre tapes are fire-resistant, radiation-resistant, and have a low coefficient of thermal expansion, even at very high temperatures. Low in density, they show very good resistance to chemical agents, particularly to acids. In comparative terms, silicate fibre-based textiles have superior high-temperature resistance to biosoluble fibre textiles.

S98 tapes are comprised of over 98 % silica. They are suitable for high-temperature applications up to 1,200 °C.

S94 tapes contain over 94 % SiO2, and function as excellent thermal insulators at temperatures up to 1,100 °C.

Silicate fibre tapes are available in adhesive and stud bushing versions for ease of application.

Applications of Silicate Tapes

  • Insulation of cables and pipes
  • Electrical insulation
  • Thermal protection

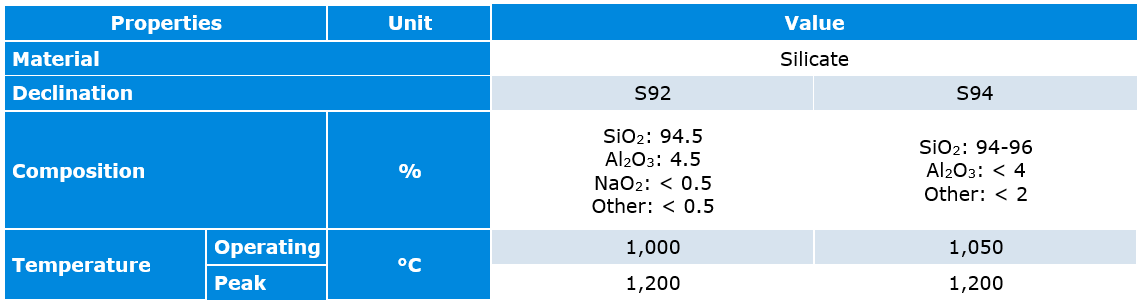

Technical Data of Silicate Tapes

Property

Unit

S98

S94

Item N°

207-8201

207-7201

Thickness

0.7

2 to 5

Width

mm

10 to 50

20 to 300

Length

mm

50

25 to 50

Max. Operating Temperature

°C

1,050

1,000

Peak Temperature

°C

1,200

1,100

S94 fibre products are produced exclusively on request and a minimum order is required.

Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
