High Temperature Silicate Twisted Ropes 1200°C

Silicate Twisted Ropes, up to 1,200 °C

Ropes in this range are made from white silicate fibres. Their diameter of approximately 9 μm prevents irritation and makes them a safe and environmentally friendly alternative to ceramic fibre.

Composed of more than 94 % SiO2, these cords are excellent thermal insulators and are resistant up to 1,100 °C in continuous temperature and 1,200 °C in peak temperature without vitrification. Their flexibility and mechanical strength make them ideal for insulating flexible pipes and cables.

The twisted ropes are available in round cross-section in diameters from 3 to 12 mm. They are delivered in 5 m rolls.

Applications of Silicate Fibre Twisted Ropes

  • Insulation gasket
  • Sealing flange

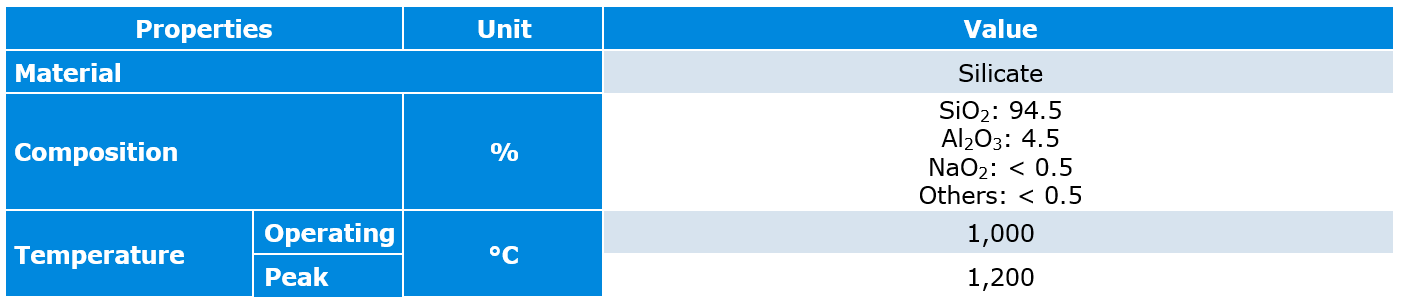

Technical Data of Silicate Fibre Twisted Ropes

Property

Unit

Item N°

207-8701

Section

kg/m3

round

Diameter

mm

3

4

6

8

10

12

Reel

mm

200

150

100

100

100

100

Other dimensions are only produced on request.

Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.

Silicate Fibre (210.89k)

Technical Data Sheet: Silicate Fibre


High Temperature Twisted Ropes (181.17k)

Date Sheet: High Temperature Twisted Ropes
