Ceramic Fabrics, up to 1,700 °C

Final Advanced Materials can supply an innovative continuous polycrystalline ceramic fibre. The metallic oxides at the heart of its composition ensure that the processing of this fibre into ceramic textiles is particularly simple. The resulting mechanical and thermal performance capabilities exceed those of other fibrous materials, including aramid, silica, quartz or even glass.

Primarily composed of alumina (Al2O3) at different percentage, 080-0300 and 080-0400 monofilament ceramic fabrics are resistant to continuous temperatures of 1,100 °C and 1,370 °C, respectively. They are mainly used in the industry as a heat shield or fire barrier

A Heat Cleaned coated version is available to limit irritations for customised applications as well as flying fibres and the amount of smoke generated during exposure to high temperatures.

Applications of Ceramic Fibre Fabrics

  • Fire shield
  • Heat shield
  • Gasket
  • Thermal protection
  • Curtains and lining
  • Expansion joints
  • Manufacture of composites

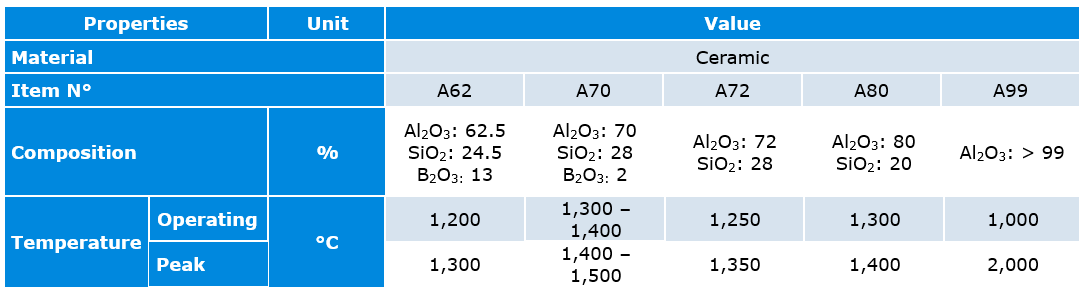

Technical Data of Ceramic Fibre Fabrics

Property

Unit

Ceramic Fabrics

Item N°

080-0310 to 080-0390

080-0410 to 080-0430

Composition

%

Al2O3 : 62.5
SiO2 : 24.5
B2O3 : 13

Al2O3 : 70
SiO2 : 28
B2O3 : 2

Max. Operating Temperature

°C

1,100

1,370

Peak Temperature

°C

1,700

1,700

Thermal Conductivity

at 100 °C

W.m-1.K-1

0.12

-

at 500 °C

0.14

0.16

at 1,000 °C

0.18

0.19

Linear Shrinkage after 15 hrs at 1,300 °C

%

< 1.5

< 0.5

Packaging of Ceramic Fibre Fabrics

Property

Unit

Ceramic Fabric 1,100 °C

Item N°

080-0310

080-0320

080-0330

080-0340

080-0350

Area Density

g/m²

110

290

270

310

440

Width

mm

970

970

1,100

970

910

Thickness

mm

0.38

0.41

0.36

0.38

0.53

Weave

No gauze weaving

5-Satin

5-Satin

Plain weave

5-Satin

Property

Unit

Ceramic Fabric 1,100 °C

Item N°

080-0360

080-0370

080-0380

080-0390

Area Density

g/m²

540

610

810

980

Width

mm

1,270

910

910

100/300/760

Thickness

mm

0.76

0.81

1.00

1.40

Weave

4-Satin

4-Satin

5-Satin

Dual plain weave

Property

Unit

Ceramic Fabric 1,370 °C

Item N°

080-0410

080-0420

080-0430

Area Density

g/m²

510

680

880

Width

mm

91

1 600

760

Thickness

mm

0,53

0,81

0,97

Weave

5-Satin

4-Satin

5-Satin

Other dimensions and cuts are available on request.

Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
