High Temperature Silicate Braided Ropes 1200°C

Silicate fibres braids resistant up to 1200°C.

Silicate Braided Ropes, up to 1,200 °C

Final Advanced Materials supplies two silicate products, with a 98 % and 94 % SiO2 content, for the effective fulfilment of all requirements.

Silicate fibre braided ropes are inorganic and contain no toxic substances (asbestos-free) or irritants. The good thermal and mechanical properties of these products make them excellent replacements for asbestos-based products. Ranging from 6 to 9 μm in diameter, these fibres pose no hazard to health.

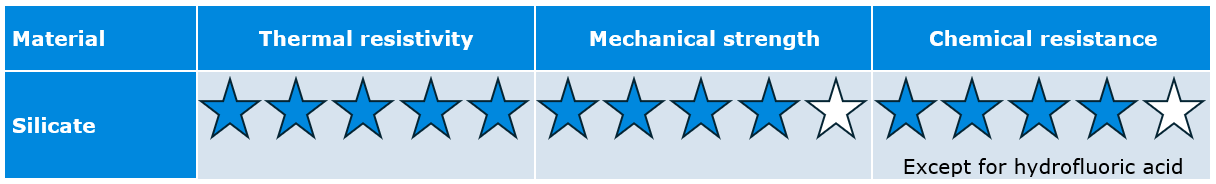

In addition to being excellent low-density thermal insulators, silicate fibre products are fire-resistant, and have a low coefficient of thermal expansion, even at very high temperatures. They are highly resistant to chemical agents, particularly acids, and to radiation. In comparative terms, silicate fibre-based textiles show superior resistance to high temperatures than biosoluble fibre textiles.

S98 braided ropes are comprised of over 98 % silica. They are suitable for high temperature applications up to 1,200 °C.

S94 braided ropes contain over 94 % SiO2, and function as excellent thermal insulators at temperatures up to 1,100 °C.

Braided ropes are available in square or round sections.

Applications of Silicate Fibre Braided Ropes

  • Sealing gaskets
  • Thermal protection

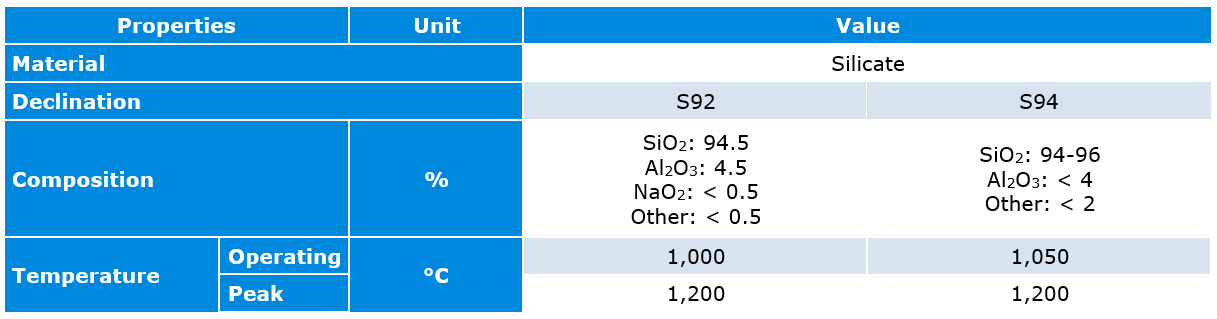

Technical Data of Silicate Fibre Braided Ropes

Property

Unit

S98

S94

Item N°

207-8301

207-8302

207-7301

207-7302

Section

round

square

round

square

Diameter

mm

3 to 25

3x3 to 25x25

5 to 80

5x5 to 100x100

Length

m

30 to 100

30 to 100

10 to 100

10 to 100

Max. Operating Temperature

°C

1,050

1,050

1,000

1,000

Peak Temperature

°C

1,200

1,200

1,100

1,100

S94 fibre-based products are only produced on request, subject to a minimum order quantity.



Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
