ZetexPlus® Tapes, up to 1,095 °C
Our partner Newtex offers a wide range of fire resistant and temperature resistant products since 1978. Due to their characteristics and performances, these products are ideal for high temperature protection and industrial furnaces sealing.
ZetexPlus® are Zetex® tapes strips with a vermiculite coating that can withstand up to 1,095 °C.
These strips are available in three product ranges to offer a variety of dimensions but also different flexibilities to suit everyone's requirements.
• Tapes P-1050: the most flexible, 1.6 mm thickness.
• Tapes P-2150: 3.2 mm thickness.
• Tapes P-3900: 6.4 mm thickness.
ZetexPlus® tapes are available in 30 mm length with widths of 25 to 150 mm. Strips with bolt holes are also available.
Applications of ZetexPlus® Fibre Tapes
- Thermal insulation
- Insulation of pipes and exhausts
- Expansion seals
- Airtight seals
- Insulation

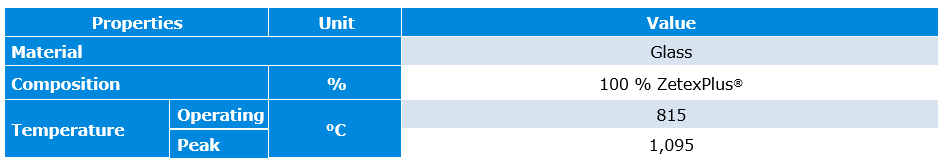

Technical Data of ZetexPlus® Fibre Tapes
|
Property |
Unit |
ZetexPlus® P-1050 |
||||
|
Item N° |
1200129 |
1200135 |
1200142 |
1200145 |
1200147 |
|
|
Area Density* |
g/m² |
1,017 |
1,017 |
1,017 |
1,017 |
1,017 |
|
Thickness* |
mm |
1.6 |
1.6 |
1.6 |
1.6 |
1.6 |
|
Width |
mm |
25 |
50 |
76 |
102 |
152 |
|
Max. Operating Temperature |
°C |
815 |
815 |
815 |
815 |
815 |
|
Peak Temperature |
°C |
1,095 |
1,095 |
1,095 |
1,095 |
1,095 |
|
Property |
Unit |
ZetexPlus® P-2150 |
|||||
|
Item N° |
1200149 |
1200150 |
1200151 |
1200152 |
1200153 |
1200154 |
|
|
Area Density* |
g/m² |
1,967 |
1,967 |
1,967 |
1,967 |
1,017 |
1,017 |
|
Thickness* |
mm |
3.2 |
3.2 |
3.2 |
3.2 |
3.2 |
3.2 |
|
Width |
mm |
25 |
38 |
50 |
76 |
102 |
152 |
|
Max. Operating Temperature |
°C |
815 |
815 |
815 |
815 |
815 |
815 |
|
Peak Temperature |
°C |
1,095 |
1,095 |
1,095 |
1,095 |
1,095 |
1,095 |
* excl. coating
Other dimensions and the ZetexPlus® P-3900 range are available on request.
Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.
