High temperature Ceramic Adhesive

Ceramic adhesive

Resbond® Ceramic Adhesives are based on high purity, ceramic binders and selected reinforcing fillers. They were designed to satisfy the most difficult, high temp. application requirements. These adhesives have excellent adhesion to ceramics, metals, glass and plastics and offer excellent high temp. stability, dielectric strength, mechanical properties and thermal shock resistance. They are resistant to molten metals, oxidizing and reducing atmospheres, most chemicals and solvents.

Just mix and cure at room temp. No objectionable odours, VOCs' or outgassing. Resbond® adhesives are available in a wide range of temperature capabilities, viscosities, strengths, expansion rates, conductivities, and dielectric strengths.

They are the ideal choice for research, electronics, metallurgical, nuclear and industrial applications. They are easily cured at room temperature without objectionable odours, VOCs' or outgassing.

High Temperature Ceramic Adhesive Applications

  • Bond Ceramic to ceramics, metals, or glass for high temp. structural bonds.

  • Impregnate Insulator parts for electrical components, appliances, heaters, etc.

  • Coat Metals, ceramics, glass, cloths, windings, etc.

  • Electronics Encapsulation, resistors, high intensity lamps, fiber optics.

  • Equipment Bonding door gaskets, thermocouples, furnace parts, feed thrust, vacuum equipment, seals, etc.

  • Appliances Seals thermocouples, bonds heating elements, etc.

  • Instrumentation Bonds and coats coil forms, fiber optics, strain gauges, etc.

  • Production Light bulbs, gas ignitors, automotive sensors, end seals, catheters, thread locking, etc.

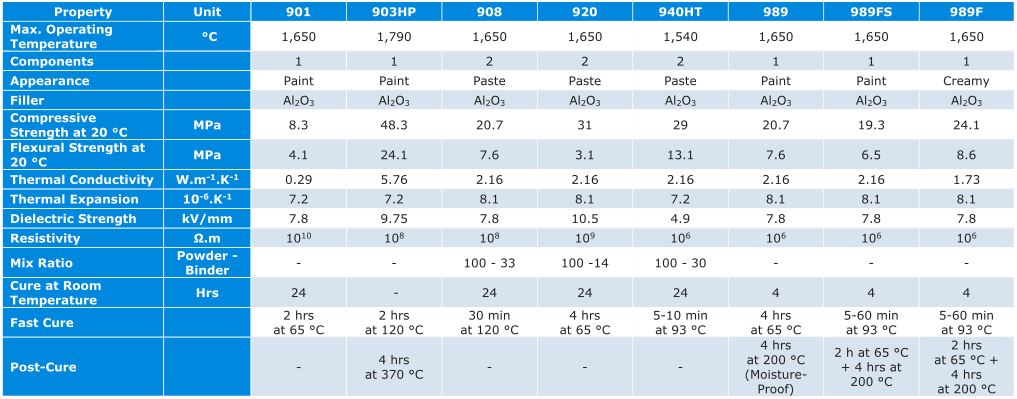

Alumina Ceramic Adhesives

1650°C - Resbond® 901

Resbond® 901 Ceramic Fiber Adhesive and Coating is a high purity, Alumina Oxide based, Ceramic Composite that combines the refractory properties of Alumina with ceramic fiber reinforcement.

1790°C - Resbond® 903HP

Resbond® 903HP is an ultra-high temperature, Alumina Adhesive. Developed for high strength bonding of any combination of dense non-porous ceramics, glass and or non-reactive metals. 903HP is a smooth, creamy paste that can be brushed, trowelled or sprayed on.

1650°C - Resbond® 908

Resbond® 908 has excellent electrical resistance, moisture resistance and thermal conductivity. It will become water insoluble after use (or post cure) at temperatures of 120°C - 150°C.

1650°C - Resbond® 920

Resbond® 920 offers both high thermal conductivity and superior electrical resistance. It is based on conductive Alumina ceramic and should be used whenever rapid dissipation of heat is required. 920 has a dielectric strength of 270 V/mm, volume resistivity of 1010 Ω.cm (at room temperature) and a thermal conductivity of 2.16 W/m.K.

1650°C - Resbond® 989

Resbond® 989 is a one component high purity, 1650°C Alumina based, general purpose adhesive. It has a smooth creamy consistency and cures at room temperature to form strong bonds to ceramics, graphite, metals and glass.

1650°C - Resbond® 989F

The Alumina used to formulate Resbond® 989F particle size has been reduced to 0.6µm. 989F combines this ultra-fine Alumina with special high temperature colloidal ceramic binders to create an adhesive ideal for a new generation of applications.

1650°C - Resbond® 989FS

Resbond® 989 Fast Set is specially formulated for applications requiring a fast setting, single component, alumina adhesive. Now, a free-flowing formulation that is ideal for use in automatic dispensing equipment. It is precisely dispensed through fine needles without clogging or mess. 989FS cures at room temperature or in 5 minutes at 93°C. It is the ideal choice for high speed production applications where automation is required.

1540°C - Resbond® 940HT

Resbond® 940 High Temperature is a specially formulated, ultra-high temperature Alumina adhesive that can be used continuously to 1540°C. Resistant to liquid metals, most chemicals and solvents, oxidizing and reducing atmospheres.

Zirconia Ceramic Adhesives

2200°C - Resbond® 904

Resbond® 904 extreme temperature Zirconia based adhesive surpasses the capabilities of most materials to provide 2200°C service. 904 is a smooth, creamy paste that is easily applied and air dried to form a hard surface. Resistant to molten metals, most chemicals and solvents, oxidizing and reducing atmospheres. It is ideal for bonding and forming electrical, oxidation erosion and liquid metal resistant coatings for ceramics, graphite and thermocouple tubes.

1090°C - Resbond® 940

Resbond® 940 Standard has excellent adhesion to ceramics, glass, metals, etc. Offers excellent electrical, chemical and thermal shock resistance.

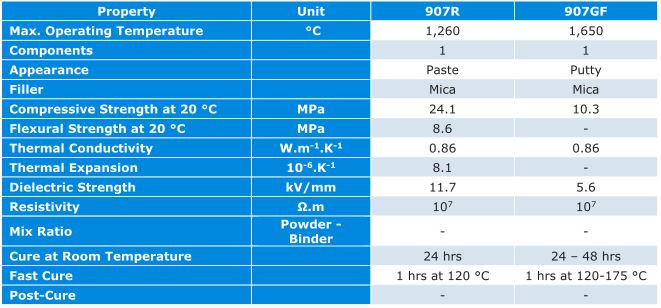

Mica Ceramic Adhesive

1260°C - Resbond® 907

Resbond® 907 is a single component ceramic composite based on Mica platelets and proprietary ceramic binders. 907, all-purpose adhesive offers high bond strength, solvent and electrical resistance. Safe to use. No objectionable or toxic odours. Use from -180°C to 1260°C.

1287°C - Resbond® 907GF

Resbond® 907GF Fireproof Adhesive and Sealant is a moist, creamy putty for use from -180°C to 1287°C. It is easily applied from standard caulking cartridges and air dries in 4 - 12 hours at room temperature.

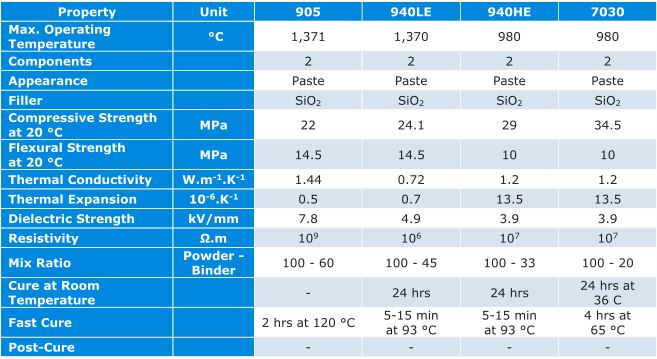

Silica Ceramic Adhesives

1370°C - Resbond® 905

Resbond® 905 Quartz (fused silica) Adhesive was specially formulated for bonding low expansion and thermal shock resistant ceramics. The thermal expansion of 905 closely matches the extremely low expansion of Quartz, Fused Silica, Cordierite and Lithium-Alumina Ceramics. These shock resistant ceramics can now be successfully bonded and used to 1370°C.

1370°C - Resbond® 940LE

Resbond® 940LE is a low expansion, Quartz based, fast curing adhesive. The perfect adhesive for bonding and potting Quartz Lamps, Glassware, Fiber Cables or any other low expansion materials. 940LE bonded high performance, halogen light bulbs in a high speed, high precision production line.

980°C - Resbond® 940HE

Resbond® 940HE is a silica filled adhesive for bonding and encapsulating high expansion materials.

980°C - Thermeez® 7030

Thermeez® 7030 High Expansion Adhesive Bonds and Protects to 980°C. Asbestos free and safe to use. No objectionable odours or harmful fibers. Just mix to a smooth, creamy paste and apply. Thermeez will cure in 24 hours at room temperature or in 4 hours at 65°C. Can be applied to most metals, ceramics, door gaskets, tadpole gaskets and ceramic cloths and has excellent adhesion to steel, stainless, aluminium, lead and ceramics. 7030 is fireproof and has resistance to most acids, alkalies, solvents, corrosives and electricity.

Magnesia Ceramic Adhesives

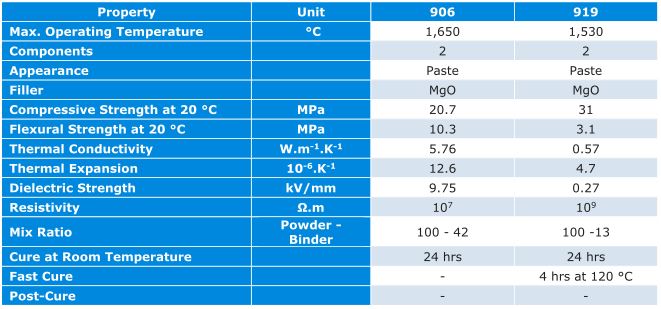

1650°C - Resbond® 906

Resbond® 906 Magnesia based Adhesive was formulated for bonding high expansion materials for use to 1650°C. Bonds to steel, stainless, aluminium, brass, copper, silver, nickel and other high expansion materials.

1530°C - Resbond® 919

Resbond® 919 was formulated with Cotronics®’ proprietary ceramic binders to offer an adhesive with exceptionably high electrical resistance. These special binders maintain their high electrical resistance and dielectric strength even when exposed to temperatures up to 1530°C.

Graphite Adhesives

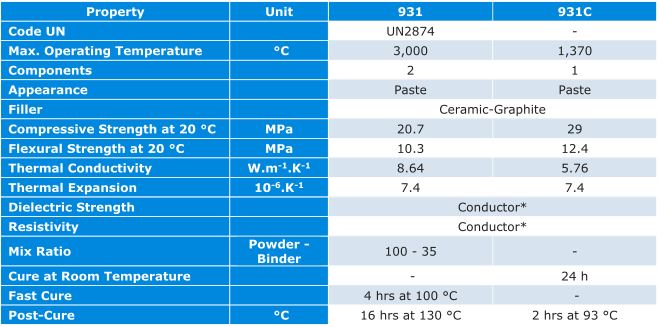

3000°C - Resbond® 931

Resbond® 931 bonds Graphite or Carbon components for use to 3000°C with 99% pure graphite. Just apply and cure at 120°C. 931 pure Graphite Adhesive has excellent adhesion to graphite, and other porous surfaces, forming graphite to graphite bonds with strengths measuring. It is electrically conductive and resistant to reducing atmospheres, most chemicals and solvents.

1370°C - Resbond® 931C

Resbond® 931C has excellent adhesion to graphite, metals, glass, ceramics and non-porous parts. Just re-mix, apply and let dry. 931C cures at room temperature without heat.

Adhesives with metallic charge

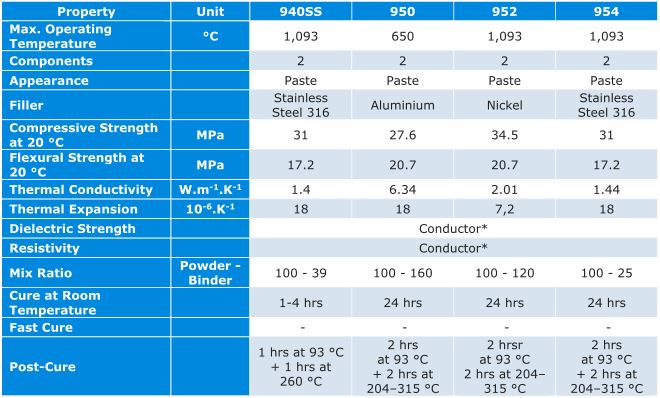

1093°C - Resbond® 940SS

Resbond® 940SS is a 316 Stainless Steel based, fast curing adhesive with excellent adhesion and heat resistance. This 1100°C, Stainless Steel Adhesive bonds, repairs and seals high temperature equipment. It is machinable and resistant to most chemicals and solvents.

Durabond® Adhesives

650°C - Durabond® 950

Resbond® 950 is easy to apply and cures at low temperature. Use with steel, cast iron, aluminium, copper, etc. Its easily machinable. Can be ground, sanded or polished.

1093°C - Durabond® 952

Resbond® 952 was specially formulated to be a low expansion, metallic adhesive for bonding 400 series Stainless Steel, low expansion high temp. alloys, metals and ceramics, etc.

1093°C - Durabond® 954

Resbond® 954 is a high expansion adhesive for high temp. bonding of 300 series Stainless, high expansion metals, ceramics, etc.

Cotronics® - Ceramic adhesive (1.36M)

Technical Data Sheet Cotronics® Ceramic Adhesive.


Resbond® 901 Adhesive

Resbond® 901 Adhesive

Ceramic adhesive Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 901A ceramic...

Resbond® 901A ceramic binder and hardener

Ceramic binder Ceramic hardener Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 903HP ceramic...

Resbond® 903HP ceramic adhesive

Ceramic adhesive Alumina Single component Maximum temperature 1790°C
Full description
Resbond® 903HPT ceramic binder

Resbond® 903HPT ceramic binder

Ceramic binder Alumina Single component Maximum temperature 1790°C
Full description
Resbond® 904 ceramic adhesive

Resbond® 904 ceramic adhesive

Ceramic adhesive Zirconia Single component Maximum temperature 2200°C
Full description
Resbond® 904-04 ceramic binder

Resbond® 904-04 ceramic binder

Ceramic binder Zirconia Single component Maximum temperature 2200°C
Full description
Resbond® 905 ceramic adhesive

Resbond® 905 ceramic adhesive

Ceramic adhesive Silica 2 components Maximum temperature 1370°C
Full description
Resbond® 905T ceramic binder

Resbond® 905T ceramic binder

Ceramic binder Silica Single component Maximum temperature 1370°C
Full description
Resbond® 906 ceramic adhesive

Resbond® 906 ceramic adhesive

Ceramic adhesive Magnesia 2 components Maximum temperature 1650°C
Full description
Resbond® 906T ceramic binder

Resbond® 906T ceramic binder

Ceramic binder Magnesia Single component Maximum temperature 1650°C
Full description
Resbond® 907 ceramic adhesive

Resbond® 907 ceramic adhesive

Ceramic adhesive Mica Single component Maximum temperature 1260°C
Full description
Resbond® 907GF ceramic...

Resbond® 907GF ceramic adhesive

Ceramic adhesive Mica Single component Maximum temperature 1650°C
Full description
Resbond® 907GF-6 ceramic...

Resbond® 907GF-6 ceramic adhesive

Ceramic adhesive Mica Single component Maximum temperature 1650°C
Full description
Resbond® 908 ceramic adhesive

Resbond® 908 ceramic adhesive

Ceramic adhesive Alumina 2 components Maximum temperature 1650°C
Full description
Resbond® 908T ceramic binder

Resbond® 908T ceramic binder

Ceramic binder Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 919 ceramic adhesive

Resbond® 919 ceramic adhesive

Ceramic adhesive Magnesia 2 components Maximum temperature 1530°C
Full description
Resbond® 920 ceramic adhesive

Resbond® 920 ceramic adhesive

Ceramic adhesive Alumina 2 components Maximum temperature 1600°C
Full description
Resbond® 931 graphite adhesive

Resbond® 931 graphite adhesive

Graphite adhesive 2 components Maximum temperature 3000°C
Full description
Resbond® 931 Graphite binder

Resbond® 931 Graphite binder

Graphite binder Single component Maximum temperature 3000°C
Full description
Resbond® 931C Graphite...

Resbond® 931C Graphite adhesive

Graphite adhesive Single component Maximum temperature 1370°C
Full description
Resbond® 931C Graphite binder

Resbond® 931C Graphite binder

Graphite binder Single component Maximum temperature 1370°C
Full description
Resbond® 940 Ceramic adhesive

Resbond® 940 Ceramic adhesive

Ceramic adhesive Zirconia 2 components Maximum temperature 1093°C
Full description
Resbond® 940 Ceramic binder

Resbond® 940 Ceramic binder

Ceramic binder Zirconia Single component Maximum temperature 1093°C
Full description
Resbond® 940HE ceramic...

Resbond® 940HE ceramic adhesive

Ceramic adhesive Silica 2 components Maximum temperature 980°C
Full description
Resbond® 940HT ceramic...

Resbond® 940HT ceramic adhesive

Ceramic adhesive Alumina 2 components Maximum temperature 1540°C
Full description
Resbond® 940LE Ceramic...

Resbond® 940LE Ceramic adhesive

Ceramic adhesive Silica 2 components Maximum temperature 1370°C
Full description
Resbond® 950 Ceramic adhesive

Resbond® 950 Ceramic adhesive

Ceramic adhesive Aluminum filler 2 components Maximum temperature 650°C
Full description
Resbond® 950T Ceramic binder

Resbond® 950T Ceramic binder

Ceramic binder Alumina Single component Maximum temperature 650°C
Full description
Resbond® 952 Ceramic adhesive

Resbond® 952 Ceramic adhesive

Ceramic adhesive Nickel filler 2 components Maximum temperature 1093°C
Full description
Resbond® 952T Ceramic binder

Resbond® 952T Ceramic binder

Ceramic binder Alumina Single component Maximum temperature 1093°C
Full description
Resbond® 954 Ceramic adhesive

Resbond® 954 Ceramic adhesive

Ceramic adhesive Stainless steel filler 2 components Maximum temperature 1093°C
Full description
Resbond® 954T Ceramic binder

Resbond® 954T Ceramic binder

Ceramic binder Alumina Single component Maximum temperature 1093°C
Full description
Resbond® 989 Ceramic adhesive

Resbond® 989 Ceramic adhesive

Ceramic adhesive Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 989T Ceramic binder

Resbond® 989T Ceramic binder

Ceramic binder Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 989F Ceramic adhesive

Resbond® 989F Ceramic adhesive

Ceramic adhesive Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 989TF Ceramic binder

Resbond® 989TF Ceramic binder

Ceramic binder Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 989FS Ceramic...

Resbond® 989FS Ceramic adhesive

Ceramic adhesive Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 7030 Ceramic adhesive

Resbond® 7030 Ceramic adhesive

Ceramic adhesive Silica 2 components Maximum temperature 950°C
Full description
Resbond® 3901 Ceramic adhesive

Resbond® 3901 Ceramic adhesive

Ceramic adhesive Alumina Single component Maximum temperature 1850°C
Full description
Resbond® 3901A Ceramic...

Resbond® 3901A Ceramic binder and hardener

Ceramic binder Ceramic hardener Alumina Single component Maximum temperature 1850°C
Full description
Resbond® 970N 7 adhesives kit

Resbond® 970N 7 adhesives kit

Ceramic adhesives Laboratory Kit including 6 references (90ml) + 1 syringe 901, 907GF, 919, 989, 940, 950, 7030
Full description
Resbond® 903 Ceramic adhesive

Resbond® 903 Ceramic adhesive

Ceramic adhesive Alumina Single component Maximum temperature 1650°C
Full description
Resbond® 940SS Ceramic...

Resbond® 940SS Ceramic adhesive

Ceramic adhesive Charged with stainless steel 2 components Maximum Temperature 1100°C
Full description
Resbond® 950FS Ceramic...

Resbond® 950FS Ceramic adhesive

Ceramic adhesive Aluminum 2 components Maximum Temperature 650°C
Full description
Durabond® 954OD Ceramic...

Durabond® 954OD Ceramic adhesive

Ceramic adhesive Alumina charged with stainless steel Low porosity 2 components Maximum Temperature 1100°C
Full description
Resbond® 954FS Ceramic...

Resbond® 954FS Ceramic adhesive

Ceramic adhesive Alumina charged with stainless steel 2 components Maximum Temperature 1100°C
Full description
Durabond® 7032 Mastic

Durabond® 7032 Mastic

Mastic  Alumina charged with stainless steel Excellent thermal resistance Maximum temperature 1100°C
Full description
