Overview: Machinable Technical Ceramics

Final Advanced Materials works on a wide variety of ceramic products, and can supply a selection of machinable ceramics.

Sintered ceramics are used in all technologies where heat resistance, abrasion resistance, chemical resistance, mechanical strength are criteria justifying their use. However, these ceramics involve a specific equipment and know-how in terms of mechanical machining or shaping and their design can be costly.

On the contrary, machinable technical ceramics (MTC) are easily manufactured by means of conventional machine tools. These ceramics can be sawn, drilled, milled, turned with classic tools, available in all general mechanical workshops. They are designed to completely replace sintered ceramics while maintaining an excellent quality.

MTC allow the production of small series parts, as well as validation prototypes. A single ceramic cannot meet all the requirements and all the requests, that is why we have developed over the years, a full range of easily machinable ceramic materials, capable of responding to a maximum of constraints

Final Advanced Materials has machining facilities and a certified ISO 9001 quality:

  • Cylindrical, surface grinding, turning
  • Milling
  • Drilling
  • Ultrasonic machining and drilling
  • Plane and cylindrical polishing
  • Tapping, threading, grinding
  • Ceramic- metal assembly, brazing, plating

Final Advanced Materials also machines:

Applications of Machinable Technical Ceramics

  • Electronic components
  • Very high-temperature electrical insulation
  • Foundry crucibles
  • High-temperature lubricants
  • Electrical components, insulators, etc.
  • Medical devices
  • Production of prototypes
  • Production of brazed components
  • Attachment of components for welding
  • Electrical parts
  • Supports
  • Wear parts

Benefits of Machinable Technical Ceramics

  • Hardness
  • High mechanical strength
  • Dimensional stability, even at high temperatures
  • Resistance to wear and corrosion
  • Electrically insulating
  • Resistance to chemical products
  • High-temperature withstand
  • Dielectric and ferro-electric properties

Comparative Table

Property

Ceramic

Metal

Polymer

Hardness

High

Low

Bad

Elastic Modulus

High

Good

Low

Resistance to High Temperature

High

Low

Bad

Thermal Expansion

Low

Good

Good

Malleability

Low

Good

Good

Corrosion Resistance

Good

Low

Low

Erosion Resistance

Good

Low

Low

Electrical Conductivity

Low

Good

Low

Density

Average

High

Low

Thermal Conductivity

Average

Good

Low

Our range of Machinable Technical Ceramics

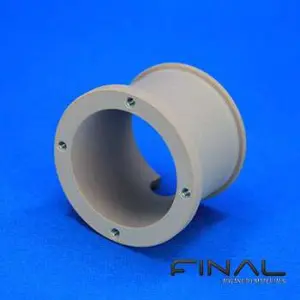

Alumina silicat

Alumina silicate can be used up to 650 °C in its raw shape and 1,300 °C in cooked finish. It can be used to make prototypes, for the brazing, the fixations of parts to be welded, insulators, supports, electrical components, etc. This ceramic allows to develop parts by cutting, sawing, drilling, milling with plates, cylindrical rods or discs using conventional machines. It appears in a compact form and has attractive electrical and mechanical characteristics. It allows the machining of high precision components without using expensive moulds or prefabricated parts: it is the ideal solution for the manufacturing of prototypes or small series. Metals in fusion, such as zinc, do not wet this ceramic, it is inert in oxidizing and reducing atmospheres and provides an outstanding resistance to thermal shocks. It does not outgas and can be used under vacuum.

Applications

  • Production of prototypes
  • Production of brazed components
  • Attachment of components for welding
  • Electrical components
  • Supports
  • Wear parts

Instructions of Implementation of the Ceramic

In its raw state, alumina silicate is machined like wood or brass, with the bandsaw, and for any traditional process: milling, turning, threading, boring, grooving, polishing, it is recommended to use tools in very hard metals, without cooling, and to clean carefully dusts of ceramic.

In the cooked form, note that parts should not exceed 12 mm of thickness if you want to avoid any crack; for higher thicknesses we shall drill holes.

During firing, the ceramic expands, from 1.9 % at 980 °C to 2 % at 1,040 °C. Beyond, variations are negligible, and the precision can reach ± 0:05 mm. We can finish grinding by softening. To bond this ceramic, we shall prefer the ceramic glue Cotronics® 919.

Firing Procedure

To resist at more than 650 °C, the parts must be prepared in the furnace by sintering. The operation will start in cold oven and the heating levels will not exceed 260 °C per hour. Consider the expansion to obtain the final dimensions (approximately 2 %). These levels will have to go down to 150 °C per hour if the parts have a thickness of more than 12 mm. The maximum temperature will not exceed 1,010 °C to 1,100 °C, and will be held, from 30 minutes for a thickness of 6 mm to 45 minutes for a thickness of 20 mm. The right value can be calculated by extrapolation. We shall cool then gradually until the part will be taken out of the furnace at about 90 °C.

Special Instructions

Actions

Advice

To cut, to drill, to turn, to bore, to thread, to perforate, to straighten, to drill out

Possible with conventional tools.

Tools speeds and materials are similar to those used for metals machining.

Carbide tools must be carefully sharpened.

Heating

Plan the expansion from 1.8 to 2 %

Example: a machined dimension of 9.8 mm will become a final dimension of 10 mm.

Diameters also undergo this expansion.

Lubricants & Cooling Liquids

NEVER use neither lubricants, nor cooling liquids.

Cleaning

Clean the machines thoroughly after work: alumina silicate is abrasive in powder form.

Remanufacturing

Possible with water to a very high precision

When required by the application: by means of silicon carbide grinding wheels.

In case of failure

Remember to check the causes most frequently observed:

- Is the firing temperature badly adjusted?

- Is there a miscalculation of the expansion?

- Does the created model present sharp corners and «hard» transitions?

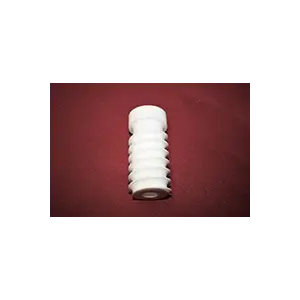

Macor®

Macor® is an outstanding engineering material which can quickly be designed into highly complex shapes, using conventional metalworking tools. Opening a wide range of possibilities, Macor® gives the performance of a technical ceramic with the versatility of a high performance polymer, while providing the machinability of a soft metal. Macor® remains continuously stable at 800 °C, with a maximum peak at 1,000 °C. Its coefficient of thermal expansion readily matches most metals and sealing glasses. As an electric insulator, particularly at high temperatures, it is excellent at high voltages and a broad spectrum of frequencies. Macor® is a white, nonwetting, odourless and non-outgassing material that exhibits zero porosity. It is also radiation resistant. Macor® is of a pure white and can be polished to a high gloss. It can be metallized, welded and bonded to a thick or thin epoxy film. Another main advantage of this unique material is that, even in small quantities, it can be manufactured in an economic way.

Fields

Examples

Ultra-High Vacuum Environments

Insulator, coil support, vacuum feed-throughs

Constant Vacuum Applications

Spacers, headers and windows for microwave tube devices, sample holders in field ion microscopes

Aerospace Industry

retaining rings, mechanical joints on the orbital probes

Nuclear-Related Experiments

Reference piece to measure dimensional change in other materials (Macor® is not dimensionally affected by irradiation)

Welding

Nozzle on the tips of oxyacetylene torches (nonwetting characteristic of Macor®)

Fixtures

electrode support and burner block in several industrial high heat, electrical cutting operations

Medical Equipment

Medical components are integrated by Macor®‘s inertness

Machining

Extremely machinable, Macor® offers tight tolerances capabilities, allowing complicated shape design (optimal performances up to +/- 0.013 mm for dimensions, < 0.5 µm for finished surface and up to 0.013 µm for polished surface).

Alternative to Macor®

The use of Macor® is restricted by the dimensions of the product concerned. Vitro 800 is an equivalent material to Macor®, available in bars of dimensions up to ø120 mm x 300 mm and in plates of dimensions up to 300 x 300 x 50 mm. Other dimensions are available on request. Moreover, Vitro800 is available at a highly cost-effective price.

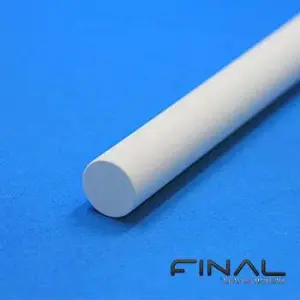

Machinable alumina (96 %)

Machinable alumina ceramic is ready to use and required no heat treatment. However, Cotronics®960 hardener can be used increase even more the wear resistance of its surface: just apply and fire at 320 °C. Machinable alumina ceramic is usable to 1,650 °C and resists to molten metals, acids, solvents and thermal chocs. It is ideal for applications in electrical, electronic, metallurgical, fixtures and vacuum industries.

Applications

  • Electrical components, insulators
  • Prototypes, brazing
  • Vacuum and R.F. heating fixtures
  • Various supports…

Usinage

Machinable alumina is machined with high precision with traditional sharp cutting tools, carbide cutting tools are preferred:

Lubrication: Water provides excellent cooling and lubrication. Insufficient lubrication will cause dulling of cutting tools and chipping of the ceramic

Cutting: Cut down into work. Use bonded silicon carbide or diamond cut off wheel with speeds of 1,800 to 2,600 rpm. Use a a bandsaw with carbide grit blade at the speed of 23 m/mn, 14 non-lubricated teeth for the outlines.

Drilling: Use a carbide drills

  • at 2,000 rpm within 6 mm in diameter
  • at 1,000 rpm above 6 mm
  • never exceed 12 mm (1/2’’)

Threading: Use a diamond wheel with a tool post grinder or tungsten carbide tools.

Tapping: Use high speed steel or carbide. Drill size should allow for 70 % thread form.

Turning: Use carbide tool bits or silicon carbide wheels on post grinder.

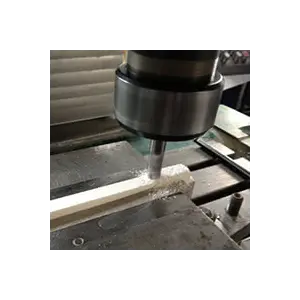

Boron Nitride

Boron nitride is a white solid material in the as produced hot pressed form. Due to the densification method used, the physical properties of the material are different according to the perpendicular and parallel axis to the direction of sintering. Boron nitride is non-toxic. Three standards machinable boron nitride:

  • Final®BN: Boron nitride with binder
  • Final®BN HP: High purity boron nitride without binder
  • Final®BN HP2: Boron nitride highly resistant to mechanical strength

Applications

  • Electric insulator at very high temperatures
  • CVD crucibles
  • Thermocouple sheath
  • Resistor holder
  • High temperature lubricant

Available Products

We machine your parts according to your drawings.

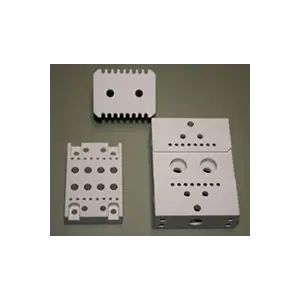

Aluminum Nitride - SHAPAL™ Hi M-soft

Aluminium nitride (AlN) is a nitride of aluminium and a wide band gap (6.2 eV) semiconductor material. It is an electrical insulating refractory material having very high thermal conductivity (higher than that of copper at 200 °C) and showing high resistance to oxidation and abrasion. It has potential applications for substrate and in power electronics for the manufacture of microwave power transistors. Aluminium nitride is synthesized by the carbothermal reduction of aluminium oxide or by direct nitridation of aluminium. It is transparent in the visible wavelengths and in the infrared (0,5 to 3µm) and can be used as a window for infrareds and radars.

Applications

  • Various electronic components that require heat dissipation and electrical insulation
  • Various components that require high-frequency wave properties, including low dielectric constant and dielectric loss
  • Tools and setters that require a low coefficient of thermal expansion.

Available Products

We machine your parts according to your drawings.

Alternative to Shapal™ Hi M-soft

We also offer a competitive product to Shapal™ M Soft by Tokuyama. This aluminum nitride has equivalent characteristics to Shapal™ M while being economically more interesting.

Machining Advice

These ceramics are machined accurately with conventional carbide tools. The following procedures will be monitored and verified frequently, as well as we will use and verify frequently very sharp tools: these materials are very hard and abrasive, they damage rapidly the tools edges. It is imperative to work slowly without vibration nor hurry. Lubrification: water is an excellent lubricant/ coolant. Maintain a continuous flow on the tool and the workpiece, to avoid splinters. For even more precision, use the recommended products.

Sawing: with circular diamond or silicon carbide saws, speeds from 2,000 to 2,500 rpm, top-down.

Trimming or Filing: with ribbons covered continuously with carbide powder, speed 30 m/mn maximum.

Drilling: with carbide drills, Carbolloy 883 type. Slow down speeds announced for HSS drills. Never drill in a single continuous operation, suspend and restart the drill progress. Use a hammer drill, re-sharpen every 3 to 4 holes.

Boring:

  • Speed: 2.2 to 3.8 m/mn
  • Tool load: 0:051 mm/tooth
  • Depth: 4 to 5 mm

Threading: use a diamond tool with chips recovery or use a small tool in tungsten carbide.

Tapping: High speed steel tools such as those in carbide are suitable. Prepare front holes at 70 % of the final diameter. Lubricate with kerosene.

Turning: with small carbide tools, or silicon carbide grinding wheels with chips recovery (Carboloy 883)

  • Cutting speed: 2.7 to 4.5 m/mn
  • Advance: 0.051 to 0.08 mm/turn
  • Depth: 4 to 6 mm

Grinding: with carbide discs sealed with epoxy, at recommended speeds. Use soft discs and of well distributed grains; for important jobs, finish with hard discs and of fine grains. Lubricate with a 1 % oil solution. Polish with white lead on a wedge or a soft rag.

Metalizing: For thick films, use metal inks (silver, gold and silver, platinum). For thin films, work by sputtering.

Comparative Table

A comparative table for the available machinable technical ceramics can be downloaded in the data sheet.

Physical variables included in this documentation are provided by way of indication only and do not, under any circumstances, constitute a contractual undertaking. Please contact our technical service if you require any additional information.

Machinable Technical Ceramics (375.86k)

Data Sheet: Machinable Technical Ceramics


Alumina

Machinable alumina is ready-to-use. It can withstand temperatures up to 1,650 °C, and is resistant to molten metals, acids, solvents and thermal impacts. Final Advanced Materials can supply ceramic bars or plates for your own use.
Full description

Alumina Silicate

Alumina silicate is a natural ceramic with remarkable flexibility of application. Final Advanced Materials provides alumina silicate, machinable high temperature ceramic. We offer boards, rods or machined parts according to your drawings.
Full description

Aluminium Nitride

Aluminum nitride (AlN) is transparent in the visible wavelengths and in the infrared. It has potential applications for substrate. Final Advanced Materials provides machinable aluminium nitride : Rods, boards or machined parts according to your drawings
Full description

Boron Nitride

Boron nitride is a machinable ceramic resistant to temperatures above 2,000 °C in inert and reducing atmospheres. Final Advanced Materials provides machinable boron nitride ceramic. We can provide rods, boards or machine parts according to your drawings.
Full description

Macor®

Macor® ceramic quickly be designed into highly complex shapes, using conventional metalworking tools. Final offers the possibility of supplying Macor® in the form of plates or bars which will allow you to produce ceramic parts with your own equipment.
Full description

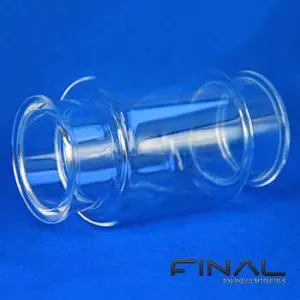

Quartz

Quartz is highly rated in the high-temperature sector for its stability and its thermal resistance. Final Advanced Materials offers a complete range of quartz products: bars, plates, tubes, blanks, portholes, custom machining according to drawings.
Full description
